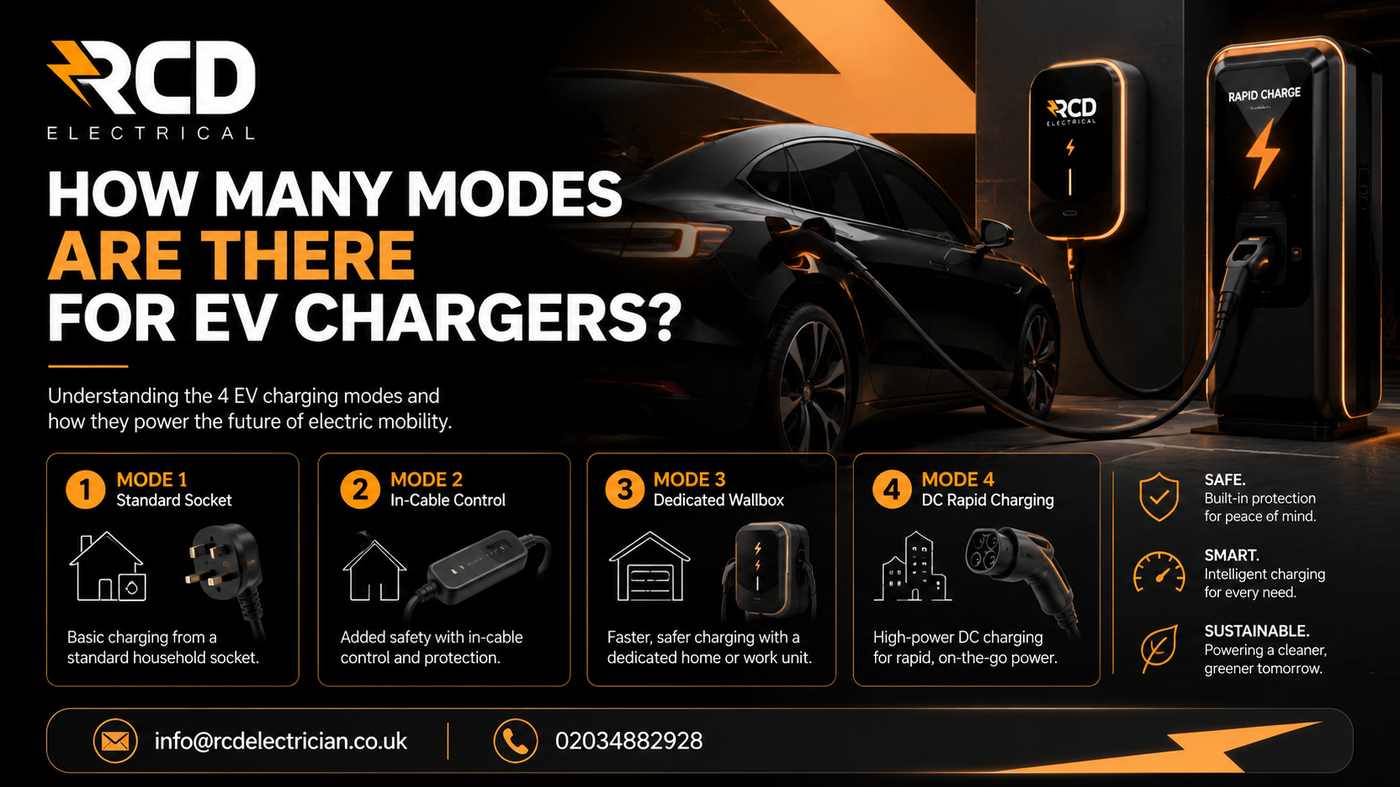

How Many Modes Are There for EV Chargers?
EV charging has four main modes: Mode 1, Mode 2, Mode 3 and Mode 4. For most UK drivers, the most important one is Mode 3 because it covers dedicated home and workplace wallbox chargers. Choosing the right setup is easier when a qualified Electrician in London checks your supply, protection, cable route and charging needs.
This simple guide explains each EV charger mode in plain English, so you can understand what is safe, what is practical and what is worth installing at home.

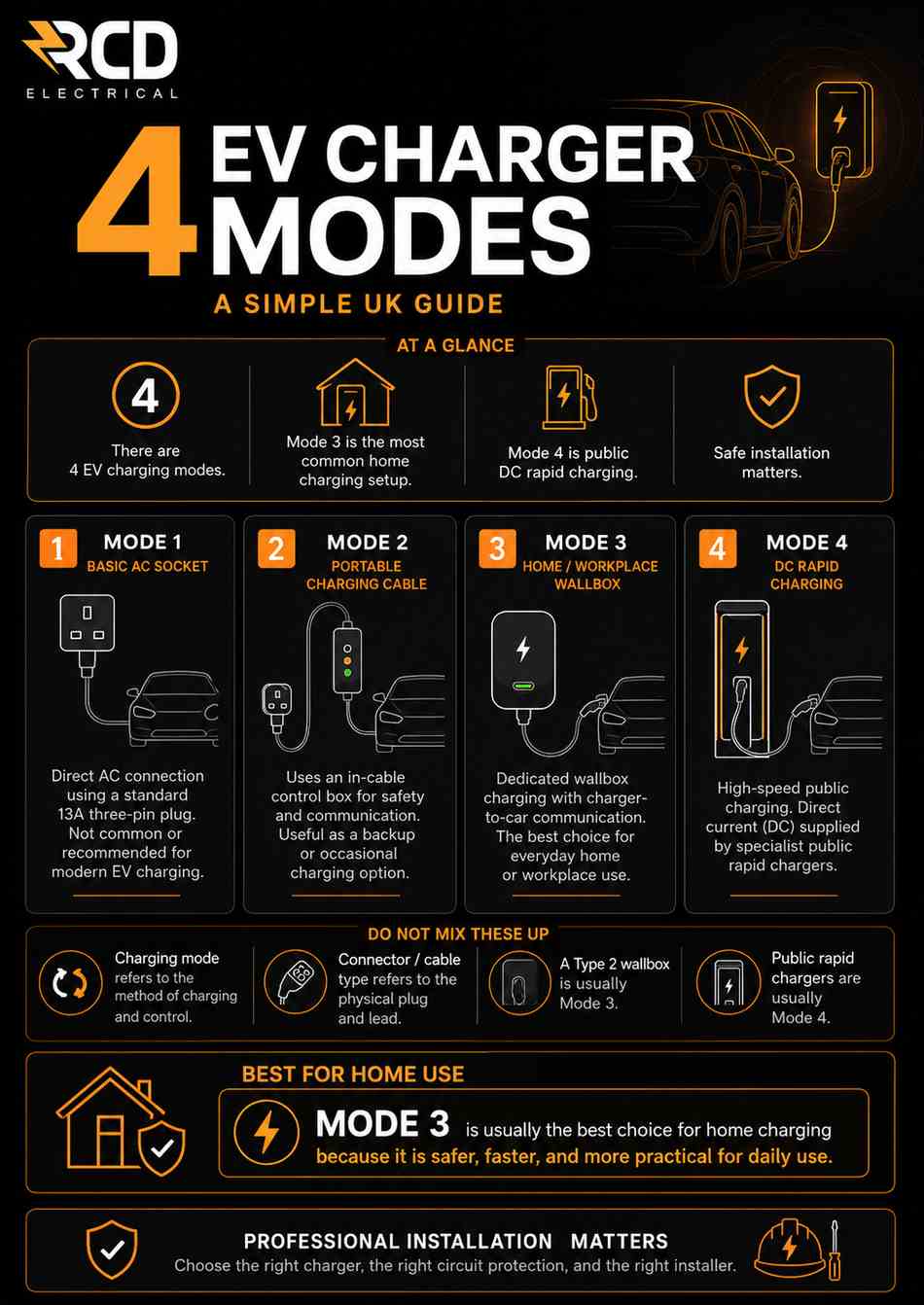

EV Charger Modes Infographic
This visual guide summarises the four EV charging modes, from basic AC socket charging to Mode 3 wallbox installation and Mode 4 DC rapid charging.
Click image to enlarge
The Whole Article at a Glance
🔢
4 Charging Modes
EV charging is usually explained through Mode 1, Mode 2, Mode 3 and Mode 4.
🏠
Best for Homes
Mode 3 is the usual choice for a proper home EV charger or workplace wallbox.
⚡
Fastest Type
Mode 4 is DC rapid charging, usually found at public rapid charging stations.
🛡️
Safety First
A dedicated charger should be installed with the correct circuit protection and testing.

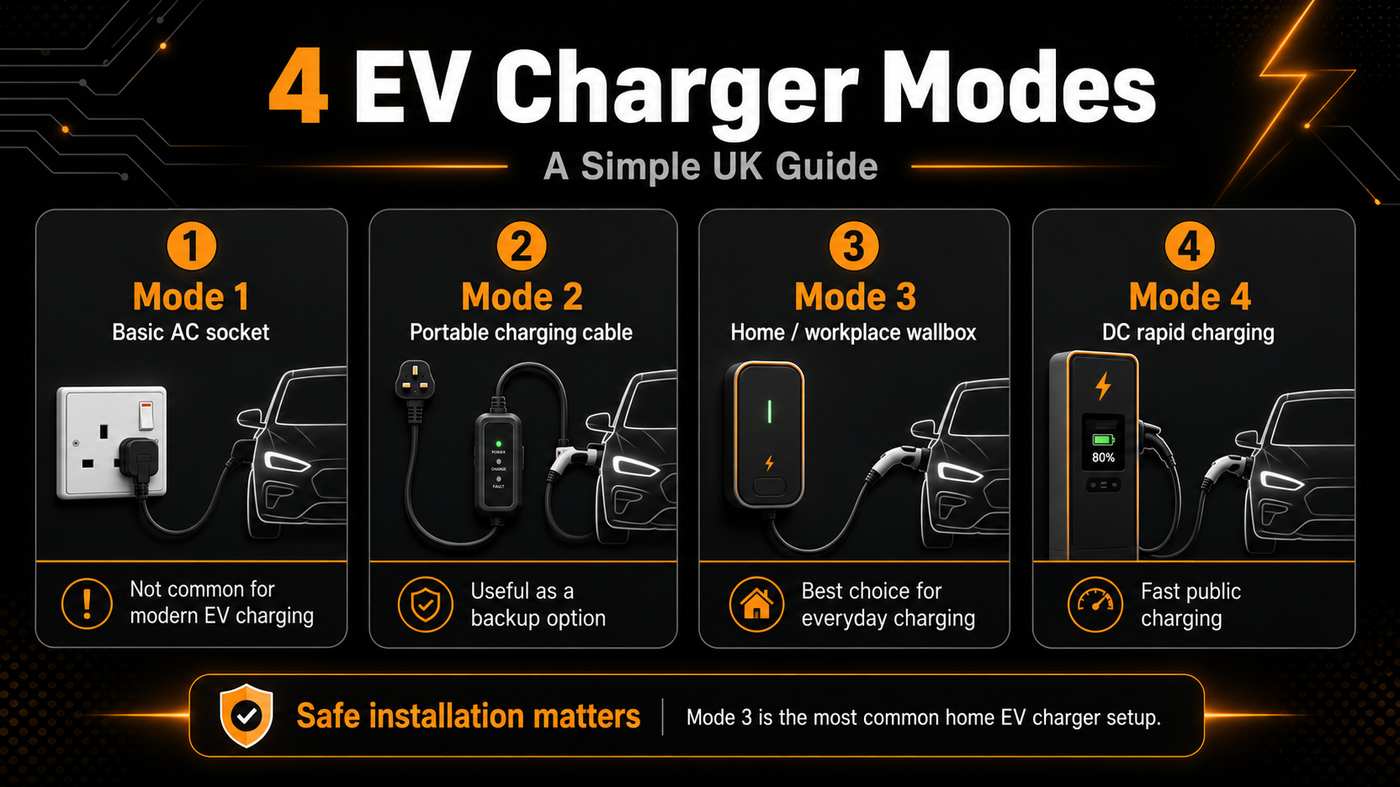

Quick Visual Comparison
The comparison below gives users a faster way to understand how Mode 1, Mode 2, Mode 3 and Mode 4 differ in everyday EV charging.
Click image to enlarge
What Does EV Charger Mode Mean?
An EV charging mode describes how the vehicle connects to the electricity supply and how much safety communication happens between the car, cable and charging equipment. It is not the same as a plug type. A Type 2 connector, for example, is the physical plug, while the charging mode explains the control method behind the charging process.
In simple terms, the higher the mode, the more controlled and purpose-built the charging setup becomes. Basic modes may only provide a connection to power, while advanced modes include communication, protection and smarter power management.
The 4 EV Charging Modes Explained
There are four EV charging modes. Most drivers will mainly deal with Mode 2 portable charging, Mode 3 wallbox charging and Mode 4 public rapid charging.
1Mode 1: Basic AC Connection
Mode 1 is the simplest form of charging. The vehicle connects directly to a standard power outlet with very limited charging control. It is not the normal choice for modern electric cars and is generally not recommended for regular EV charging.
2Mode 2: Portable Cable Charging
Mode 2 uses a portable cable with an in-cable control box. Many drivers know this as the emergency or occasional charging cable that can connect to a suitable socket. It is useful as a backup, but it is slower and less convenient than a dedicated charger.
3Mode 3: Dedicated Wallbox Charging
Mode 3 is the common setup for home EV chargers and workplace charge points. The charger communicates with the vehicle, manages charging safely and is connected to a dedicated electrical circuit. For most homes, this is the right long-term option.
4Mode 4: DC Rapid Charging
Mode 4 uses direct current charging. Instead of relying on the car’s onboard AC charger, the public rapid charger supplies DC power directly to the battery through specialist equipment. This is usually found at motorway services, charging hubs and commercial rapid stations.
Which EV Charger Mode Is Best for Home?
For most domestic properties, Mode 3 is the best answer. A professionally installed wallbox is faster, safer and more practical than relying on a portable cable. It can also support smart charging features, scheduled charging and better energy control depending on the charger model.
From a product point of view, a good home EV charger should not be chosen only by brand name. The right choice depends on your vehicle, parking position, consumer unit, spare electrical capacity, earthing arrangement, cable route, Wi-Fi or app requirements and future charging habits.
- Mode 3 for daily home charging
- Mode 2 for backup use
- Mode 4 for public rapid charging
Cable, Connector and Charger: Do Not Mix Them Up
Many EV owners search for charger modes when they actually mean cable types. These are connected topics, but they are not identical. A cable or connector is the physical connection. A charging mode is the charging method, safety communication and power delivery arrangement.
For example, a home wallbox may use a Type 2 socket or a tethered Type 2 cable, but the charging process is normally Mode 3. A public rapid charger may use CCS, but the process is normally Mode 4 because the charger delivers DC power.
This is why it is important to speak to an installer before buying equipment. A charger that looks right online may not be the best match for your electrical installation or your daily driving routine.
Why Professional EV Charger Installation Matters
EV chargers place a long, continuous demand on an electrical installation. That is why the circuit must be designed, protected, installed and tested correctly. A safe installation may involve checking the consumer unit, protective devices, cable size, route, load demand and charger location.
RCD Electrical helps homeowners and businesses choose practical EV charging solutions with a strong focus on safety, reliability and neat installation. Instead of simply fitting a box on the wall, the installation should be planned around the property, the vehicle and the way the charger will be used every day.
Need a Mode 3 EV Charger Installed?
If you want a safer and more practical EV charging setup at home or work, RCD Electrical can help with advice, installation and testing.
Choose the right charger mode, the right product and the right installer from the start.
